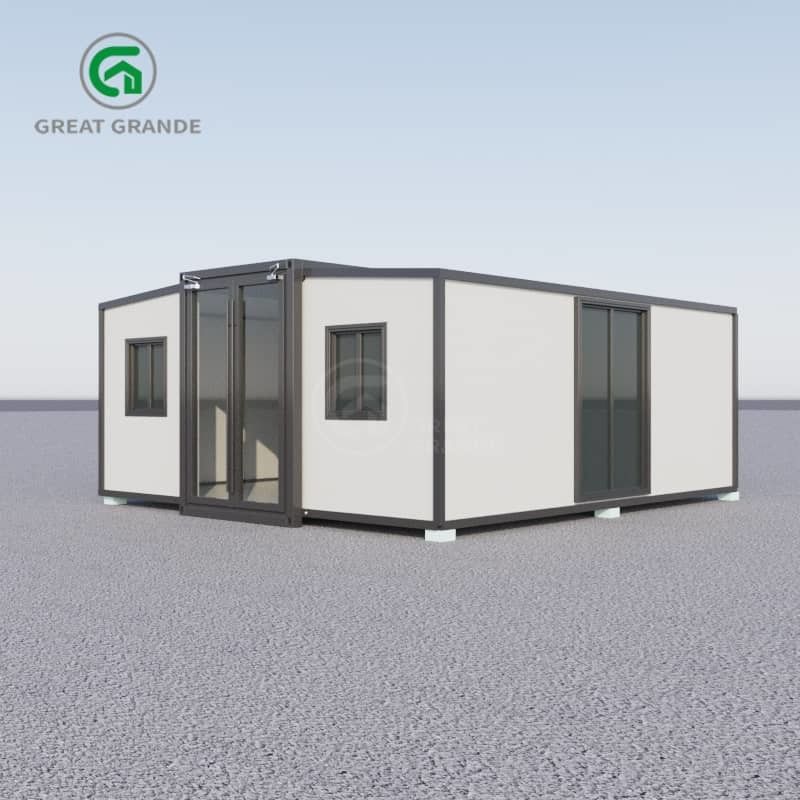

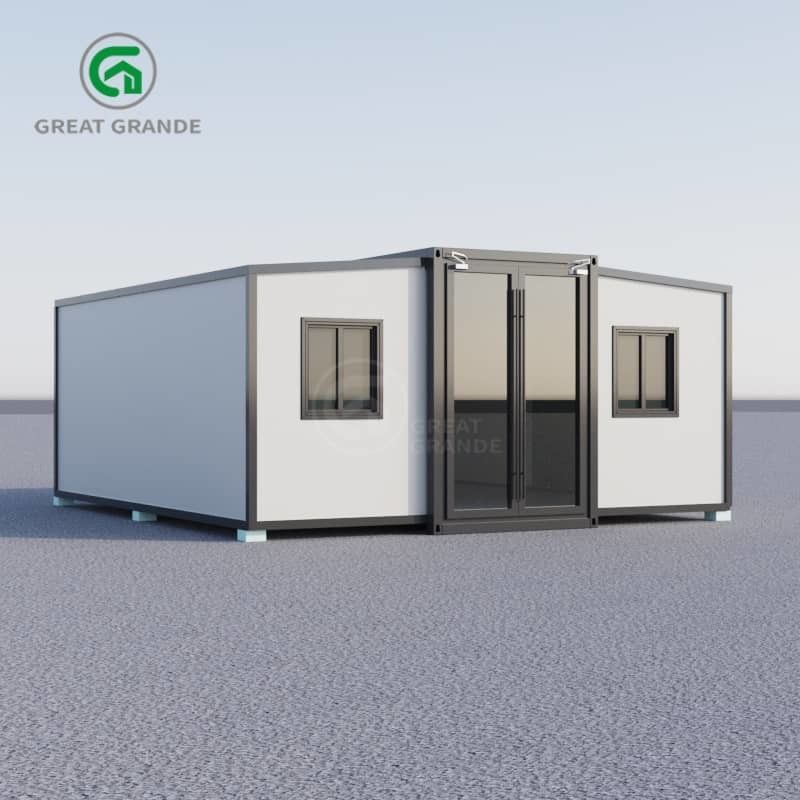

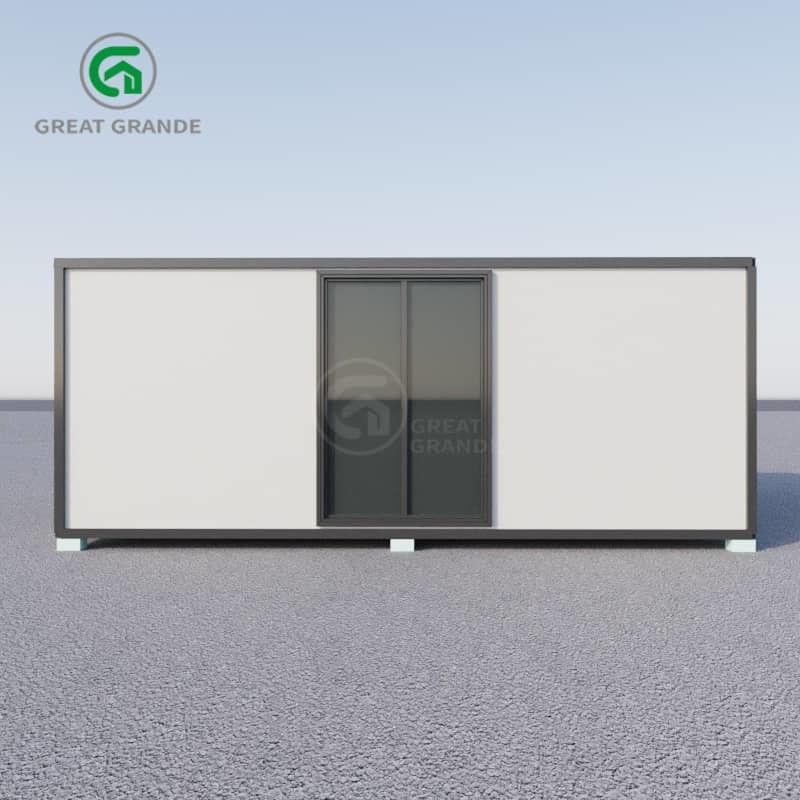

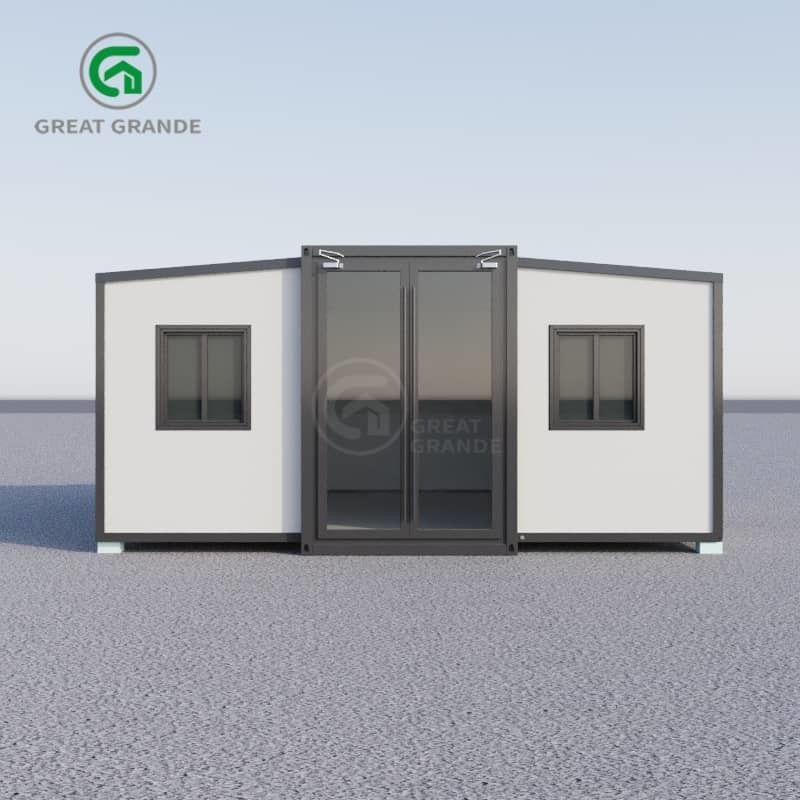

20FT Collapsible Container Homes Expandable Prefab House For Easy Transportation

Grande collapsible container homes revolutionizes modern living. Located in Hefei City, Anhui Province, China, Grande is a global leader in portable housing solutions, seamlessly integrating research and development, production, sales, and service.

Key Features and Specifications

Expansion and Folding Dimensions

• Grande’s collapsible container homes are designed with convenience in mind.
• The structure boasts an impressive expansion size of 5860 mm in length, 6400 mm in width, and 2500 mm in height.
• Internally, it offers a spacious area measuring 5600 mm by 6300 mm with a height of 2250 mm.
• When folded, the dimensions are reduced to a compact 5860 mm by 2280 mm by 2500 mm, making it highly transportable and easy to store.
• Weighing 2500 kg, the structure is robust yet manageable, ensuring it withstands various environmental conditions while remaining mobile.


Sturdy Framework

• The framework of Grande’s collapsible container homes is constructed from high-quality galvanized steel, known for its exceptional durability and resistance to corrosion.
• The main beam is made of a galvanized square tube (80*100*2.5MM Q235), providing a strong backbone for the structure.
• The columns, crafted from a galvanized folded piece (150*210*2.0MM Q235), add to the stability and longevity of the home.
• The subframe, made from a galvanized square tube (40*60*1.5MM Q235), and the box hanger, measuring 210*150*160*4MM Q235, further enhance the structural integrity.
• Additionally, galvanized thickened hinges (Q235) ensure secure and reliable folding and unfolding operations.

Quality Flooring

Grande prioritizes comfort and durability in its flooring solutions. The middle floor consists of an 18mm cement floor, offering a solid and stable foundation. On both sides, the flooring is made from 18mm bamboo plywood, providing a blend of strength and natural aesthetics.

Advanced Insulation System

• The insulation system in Grande’s collapsible container homes is designed to offer superior thermal and sound insulation.
• The side walls feature a 75mm sandwich panel with a double-sided color roll of 0.35, available in materials such as rock wool, EPS, and polyurethane, with a standard material density of 12kg/m³ EPS.
• The cut-off sections utilize a 50mm sandwich panel with a double-sided 0.35 color steel plate substrate.
• The main roof and side roof also use a 50mm sandwich panel with similar materials, ensuring consistent insulation throughout the home.

Comprehensive Electrical System

• Grande’s collapsible container homes are equipped with a comprehensive electrical system designed to meet various international certification standards.
• Standard national wires are used, with specifications including incoming wire 6², air-conditioning socket 4², ordinary socket 2.5², and lighting 1.5².
• The circuit breaker system includes a 2P63A main switch and shunt leakage protectors (2P43A/2P32A/1P20).
• The homes are illuminated by six three-proof LED ceiling lamps, and standard international three-hole sockets are provided, customizable to meet specific customer requirements.

Secure Door and Window System

• Security and insulation are key considerations in the design of Grande’s door and window systems.
• The entry door is a standard steel anti-theft door, with options for custom broken bridge aluminum, titanium-magnesium alloy, and aluminum alloy.
• Windows are standard plastic-steel double-glass casement windows, with high-end options available upon request. Standard window sizes include 930*930*6mm and 500*500*1mm.

Customization and Layout Options

• Grande’s collapsible container homes offers a variety of layout options to suit different needs, from one-bedroom, one-bathroom units to four-bedroom, one-bathroom configurations.
• The exterior color, material, door and window locations, and style of framed interior wall panels can all be customized to reflect personal preferences and specific requirements.


Quick and Easy Assembly

One of the standout features of Grande’s collapsible container homes is their ease of assembly. With just four workers, a house can be constructed in ten minutes. The process is straightforward and efficient, ensuring that the home is well-painted, solidly framed, and complete with siding, windows, doors, electrical systems, and flooring.

Commitment to Quality

Grande is dedicated to maintaining the highest standards of quality. The company boasts advanced production facilities and a skilled technical team, ensuring that every step of the production process, from product design to raw material sourcing, meets stringent quality requirements.

Trusted Partnerships and Certifications

Grande has established partnerships with large construction companies and frequently collaborates with the Chinese government on housing projects for construction sites and disaster relief. The company is recognized for its high-quality products and holds numerous certifications, reflecting its commitment to excellence.
