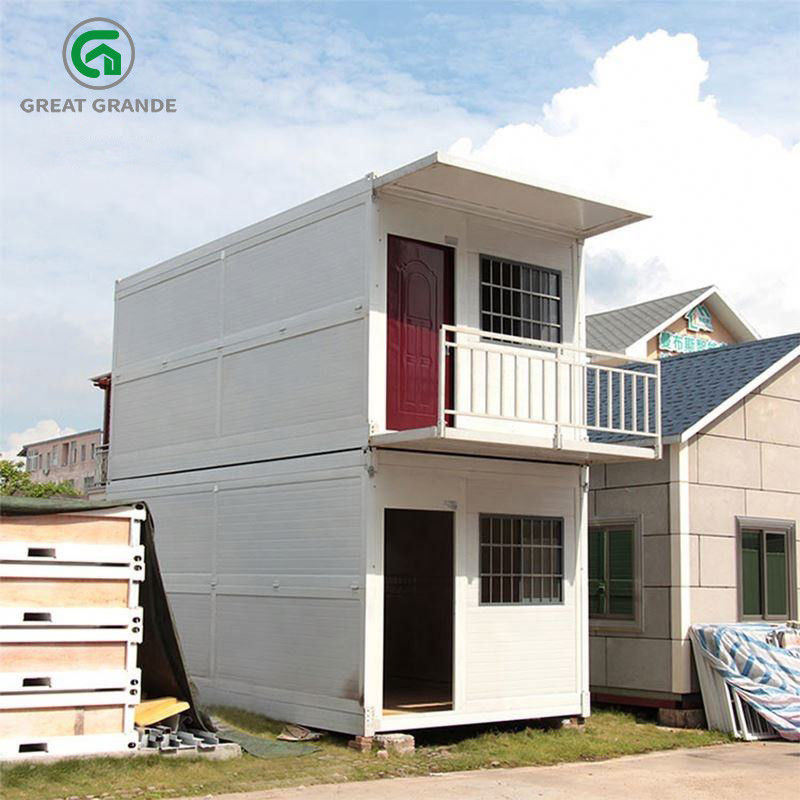

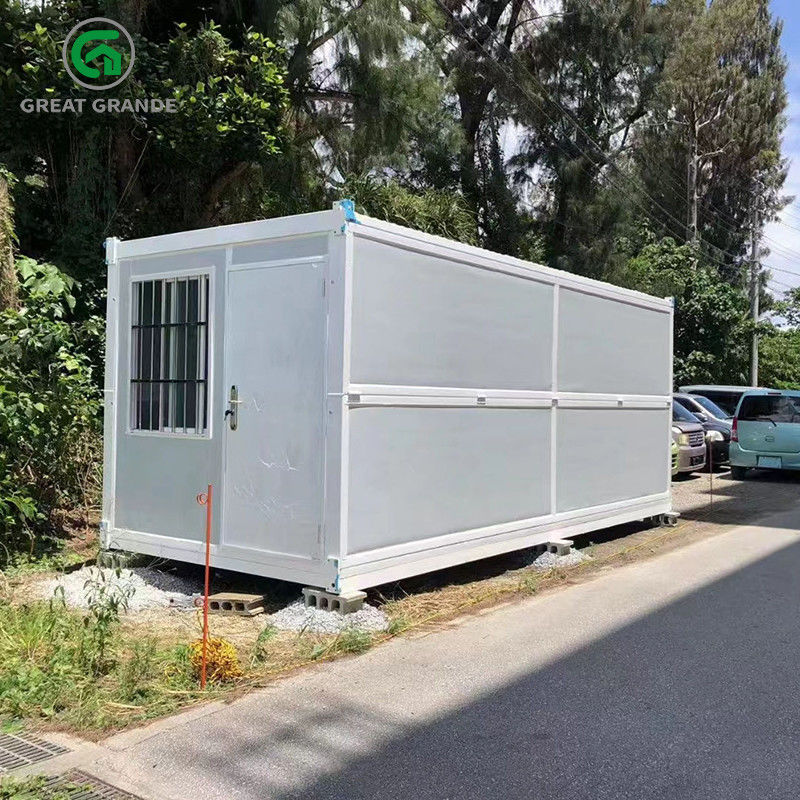

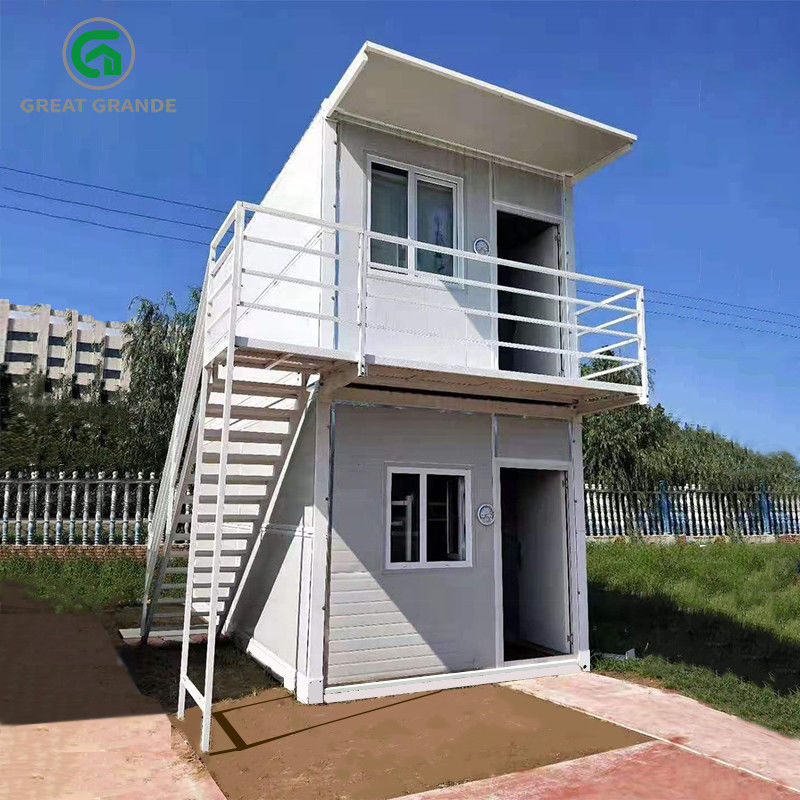

►Shockproof Prefab Folding Container House Waterproof Fireproof Use In Emergency Disasters
Earthquake-proof prefabricated folding container houses are a revolutionary solution for quick response to emergency disasters. With its excellent fireproof, waterproof and earthquake-resistant performance, this folding container house has become the benchmark of disaster relief efficiency. It is designed for the homeless and can be deployed quickly in critical situations.
►Folding Container House Parameters
|
Supporting equipment |
Parameters |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m² |
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m². |
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. |
Wall deformation coefficient: 300 kg/ m² |
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade. |
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating |
►Folding Container House Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2390mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
►Folding Container House Characteristical
►Folding Container House Advatage
Advanced Waterproof Design: Its patented concave-convex design enhances waterproof capabilities, ensuring a safe and dry interior even in adverse weather conditions.

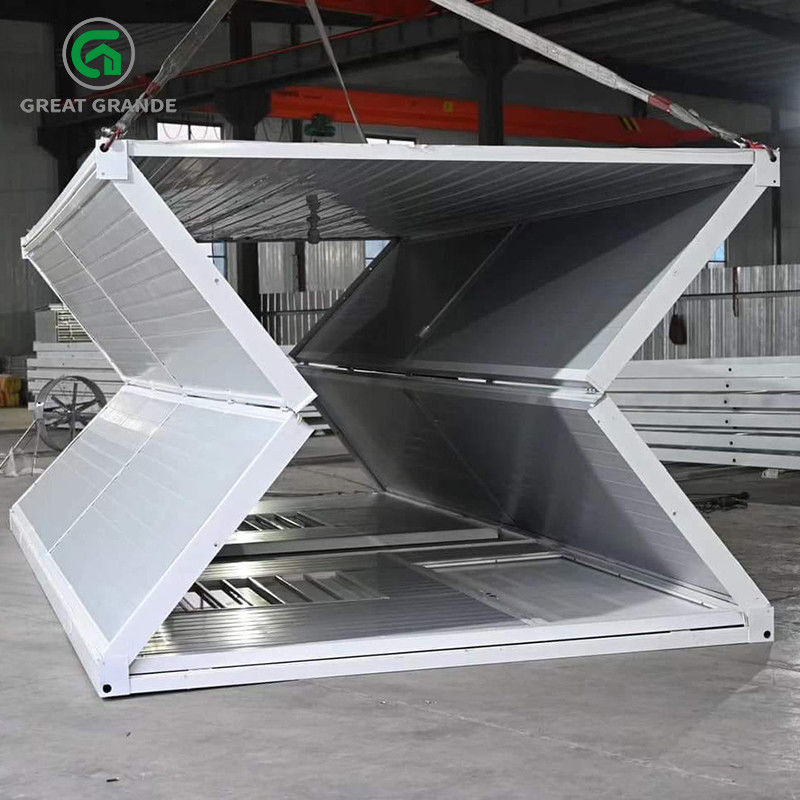

►Folding Container House Folding Process
The folding process of the earthquake-proof prefabricated folding container house proves its efficiency. In just four minutes, a folding container home can be transformed into a fully functional home. The patented concave-convex waterproof design further ensures the integrity of the house and its ability to withstand severe weather.
►Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
►FAQ
Q:Are you the factory or the trading company?
A:We factory and office in Hefei city, China.
Q:What products do you offer?
A:We focus on prefab labor camp, steel structure, container houses, modular villa for more than 10 years.
Q:What is your payment term?
A:The payment term are TT and L/C.
Q:What is your MOQ (minimum order quantity) ?
A:1X40HQ for container house or expandable house.
Q:Do you have the experience to cooperate with the government?
A:As a famous brand, Grande has successfully completed many projects with government, international joint venture, construction company and charity organization in various fields of oil, military camps and emergency function in Saudi Arabia, UAE, Qatar, Sudan, Mozambique, Congo, Brazil, Mexico, India, Indonesia, Thailand and Philippines.
Q:How is your after-sales service?
A:
1. Any question, welcome to contact us. 24 hours available for you.
2. One order, one special person to follow the whole production.
3. For the house install, we will give you the 3D install drawing. If you need, we also can send you an engineer to teach your workers, but you have to charge the double ticket, accommodation, food and salary.
Q:What information should we offer before you quote?
A:If you have the drawing, pls give us and tell us the material you use.
If no drawing, pls tell us the usage and the size of the house, then we design for you with the good price.
