Place of Origin:
Hefei,China
Brand Name:
Grande
Certification:
CE
Model Number:
PK-305
Contact Us

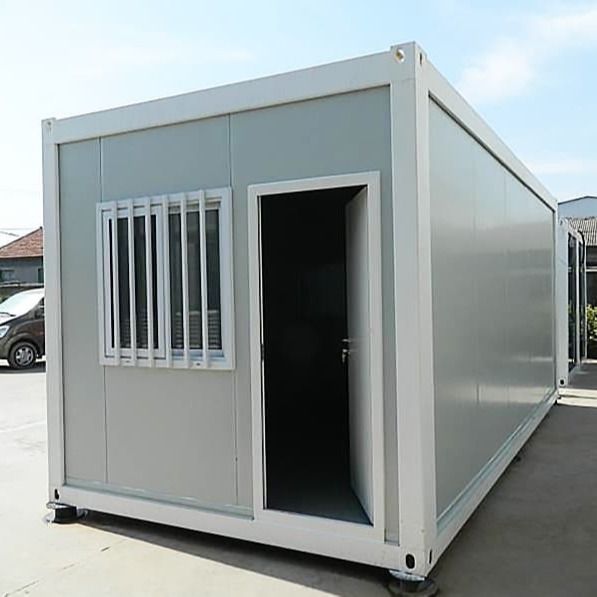

These houses can be quickly assembled on-site, reducing construction time and labor costs compared to traditional building methods
Basic Info
| Top frame | 2.3mm galvanized forming beam, galvanized content 80g/㎡, 150mm wide and 5500mm long |
| 2.3mm galvanized forming beam, galvanized content 80g/㎡, 150mm wide and 2194mm long | |
| Galvanized 30mm*50mm*1.2mm cross brace, galvanized content 80g/㎡ | |
| 20mm*30mm*1.2mm galvanized square tube, galvanized content 80g/㎡ | |
| 20mm*20mm*1.0mm galvanized square tube, galvanized content 80g/㎡ | |
| 20mm*10mm*1.0mm galvanized square tube, galvanized content 80g/㎡ | |
| 0.3mm 831 ceiling tile | |
| 75mm rolled cotton insulation | |
| Type 50 hanging rail, 5595mm, galvanized content 80g/㎡ | |
| hanging wheel | |
| connector | |
| Bottom frame | 2.5mm galvanized forming beam, galvanized content 80g/㎡, 150mm wide and 5800mm long |
| 2.5mm galvanized forming beam, galvanized content 80g/㎡, 150mm wide and 2494mm long | |
| Lower beam angle steel folded parts, 5800mm | |
| Lower beam angle steel folded parts, 2494mm | |
| Galvanized square tube 40mm*60mm*1.7mm galvanized cross brace, galvanized content 80g/㎡ | |
| Upright column | 2.3mm galvanized column, galvanized content 80g/㎡ 150 wide, 150 wide and 2195mm high |
| Connector 8.0mm, galvanized content 80g/㎡ | |
| Galvanized corner fittings | 3.0mm upper corner piece, galvanized content 80g/㎡ 150mm*150mm*140mm |
| 3.0mm lower corner fittings, galvanized content 80g/㎡ 150mm*150mm*150mm | |
| External roof | Skin roof 0.4mm color steel single tile, vaulted roof, drainage around |
| 0.47mm color steel single tile, corrugated tile vault, special waterproof method | |
| Moisture-proof film | PE resin film 1.0mm |
| Paint | Electrostatic spray |
| Bolt | inner hexagon |
product comparison
Stable Structure
Discard traditional technique for many splicing welding points with the defects such as large error, roughness, deformation and wear, and time-consuming, Anhui Grande selects professional assembly-line equipment for production of automobile grade galvanized steel can make error-free, multi-faceted structure, high strength, process saving and labor cost saving products.
FAQ
Q. Are you the manufacturer or the trading company?
A.We are factory
Q. What products do you offer?
A. We focus on prefabricated houses, such as labor camp, container house, steel structure warehouse, modular office.
Q. What is your payment term?
A. Our payment term : for standard products 30% deposite, the banlance should be paid before delivery.
( for Customized products,will depend on the design. )
Q. What is your MOQ (minimum order quantity) ?
A. for standard products, we don't have MOQ quantity.
Q. How is your after-sales service?
A. 1. 24 hours available after-sales service.
2. For the installation, we will offer installation drawing and videos, if any questions we can reply in time. We can also can send our engineer to guide local workers, but you have to charge the double ticket, accommodation, food and salary.
