Place of Origin:
Hefei China
Brand Name:
Grande
Certification:
CE
Model Number:
A020
Contact Us
video

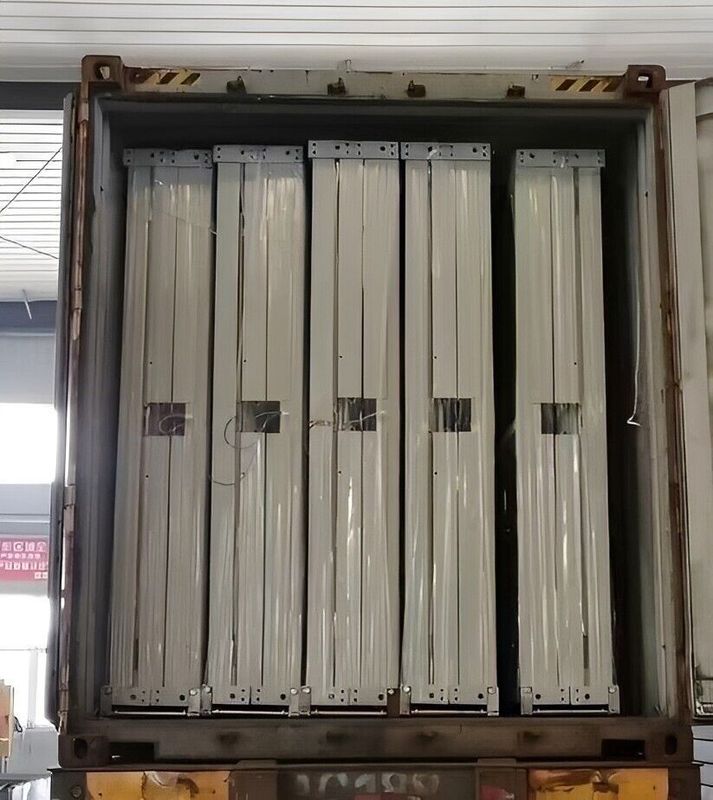

Portability is a significant advantage of Folding Container Homes. These containers can be easily transported via trucks, ships, or even airplanes, allowing for quick relocation as needed. Their compact size and foldable design make them suitable for remote areas or disaster relief efforts.
Folding Container Parameters
|
Supporting equipment:
|
Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m²
|
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m².
|
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft.
|
Wall deformation coefficient: 300 kg/ m²
|
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance,
|
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade.
|
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating
|
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2450mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
Advatage
Safe Using
The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
FAQ
Q. Are you the manufacturer or the trading company?
A.We are factory
Q. What is your payment term?
A. Our payment term : for standard products 30% deposite, the banlance should be paid before delivery.
( for Customized products,will depend on the design. )
Q. How is your after-sales service?
A. 1. 24 hours available after-sales service.
2. For the installation, we will offer installation drawing and videos, if any questions we can reply in time. We can also can send our engineer to guide local workers, but you have to charge the double ticket, accommodation, food and salary.
Q: How much is the price of the folding container? Is there a discount for bulk purchase?
A: Please contact us for specific information, we will have someone to answer:
