Place of Origin:
Hefei China
Brand Name:
Grande
Certification:
CE
Model Number:
A015
Contact Us
These houses can be equipped with insulation materials, enhancing energy efficiency and reducing heating or cooling costs.
Folding Container Parameters
|
Supporting equipment:
|
Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m²
|
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m².
|
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft.
|
Wall deformation coefficient: 300 kg/ m²
|
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance,
|
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade.
|
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating
|
Product Details
| Classification | Heading | Specification |
| Size | Length | 6000mm |
| Width | 3000mm | |
| Height | 2650mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating |
Carpoly High Gloss Enamel |
Advatage:

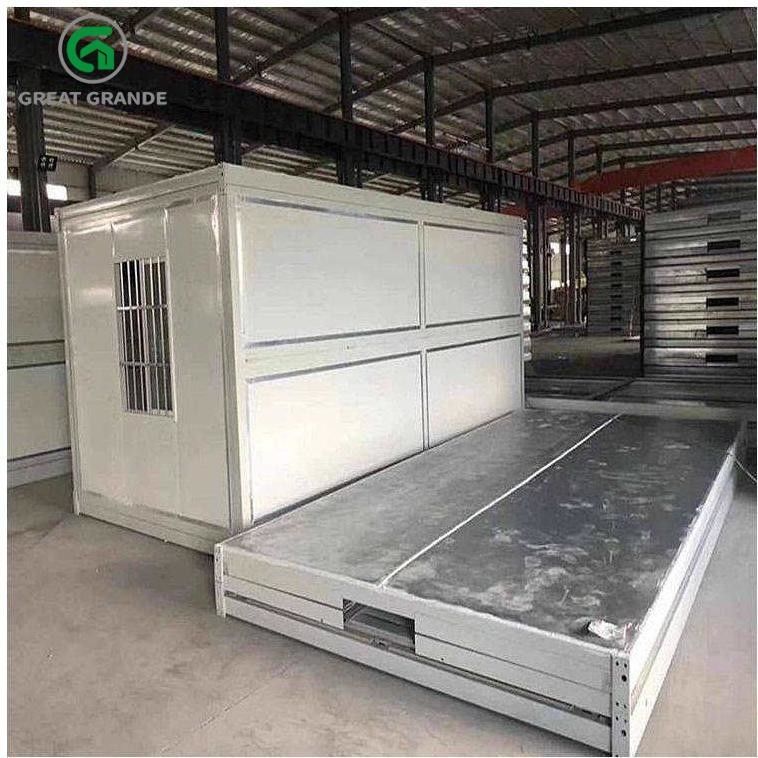

Stable Structure: Discard traditional technique for many splicing welding points with the defects such as large error, roughness, deformation and wear, and time-consuming, Anhui Grande selects professional assembly-line equipment for production of automobile grade galvanized steel can make error-free, multi-faceted structure, high strength, process saving and labor cost saving products.
Shipping and Export:Our product only has 42cm height after folding, and we save more than 80% of the transportation. The 40 foot container can hold 10 sets of folding container house. Compared with other box room outlets, it can save more transportation costs and high manual installation costs. Meet the quality inspection conditions of all customs, install quickly on site, use repeatedly for many times, and have a service life of more than 15 years, which is recognized and favored by international friends around the world.
Storage: Our container room can store more than 10 sets, which greatly saves the storage area and the site use cost.
Safe Using: The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
FAQ
Q. How is your after-sales service?
A. 1. 24 hours available after-sales service.
2. For the installation, we will offer installation drawing and videos, if any questions we can reply in time. We can also can send our engineer to guide local workers, but you have to charge the double ticket, accommodation, food and salary.
Q. What information should we offer before you quote?
A. 1.you have the drawing, please give us and tell us the material you use.
2. If no drawing, please tell us the usage and the size of the house, then we design for you with the good price.
Q: How long is the life of a folding container?
A: It can be folded a thousand times repeatedly, with a lifespan of more than 15 years.
Q: In the face of 3 million volts of lightning, is a metal house like a container safe?
A: Regarding thunderstorms in closed metal spaces, according to Mike Faraday’s theory: Metal box-shaped buildings are the safest place. Electric charges will flow evenly around the closed metal container without passing through the container. The principle Similar to being on an airplane.
Q: How much is the price of the folding container? Is there a discount for bulk purchase?
A: Please contact us for specific information, we will have someone to answer:
