Place of Origin:
Hefei China
Brand Name:
Grande
Certification:
CE
Model Number:
A001
Contact Us

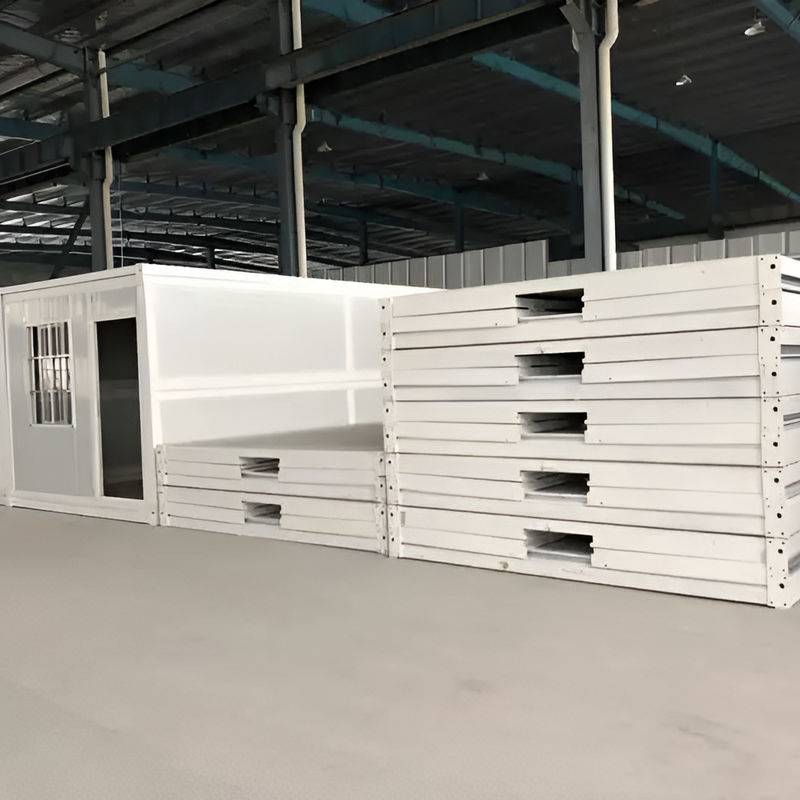

Portability is a significant advantage of Folding Container Homes. These containers can be easily transported via trucks, ships, or even airplanes, allowing for quick relocation as needed. Their compact size and foldable design make them suitable for remote areas or disaster relief efforts.
Folding Container Parameters
|
Supporting equipment:
|
Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m²
|
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m².
|
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft.
|
Wall deformation coefficient: 300 kg/ m²
|
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance,
|
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade.
|
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating
|
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2450mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
Advatage
Stable Structure
Discard traditional technique for many splicing welding points with the defects such as large error, roughness, deformation and wear, and time-consuming, Anhui Grande selects professional assembly-line equipment for production of automobile grade galvanized steel can make error-free, multi-faceted structure, high strength, process saving and labor cost saving products.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
FAQ
Q. Are you the manufacturer or the trading company?
A.We are factory
Q. What products do you offer?
A. We focus on prefabricated houses, such as labor camp, container house, steel structure warehouse, modular office.
Q. What's the application?
A. the container can be used to container office, container house,prefabricated house, hotel, clinic, dormitory, camp,toilet,bathroom, bedroom, canteen, shop, shower room, storage room, hospital and so on.
Q: How long is the life of a folding container?
A: It can be folded a thousand times repeatedly, with a lifespan of more than 15 years.
Q: In the face of 3 million volts of lightning, is a metal house like a container safe?
A: Regarding thunderstorms in closed metal spaces, according to Mike Faraday’s theory: Metal box-shaped buildings are the safest place. Electric charges will flow evenly around the closed metal container without passing through the container. The principle Similar to being on an airplane.
Q: How much is the price of the folding container? Is there a discount for bulk purchase?
A: Please contact us for specific information, we will have someone to answer:
