Place of Origin:
Hefei China
Brand Name:
Grande
Certification:
CE
Model Number:
A001
Contact Us
video

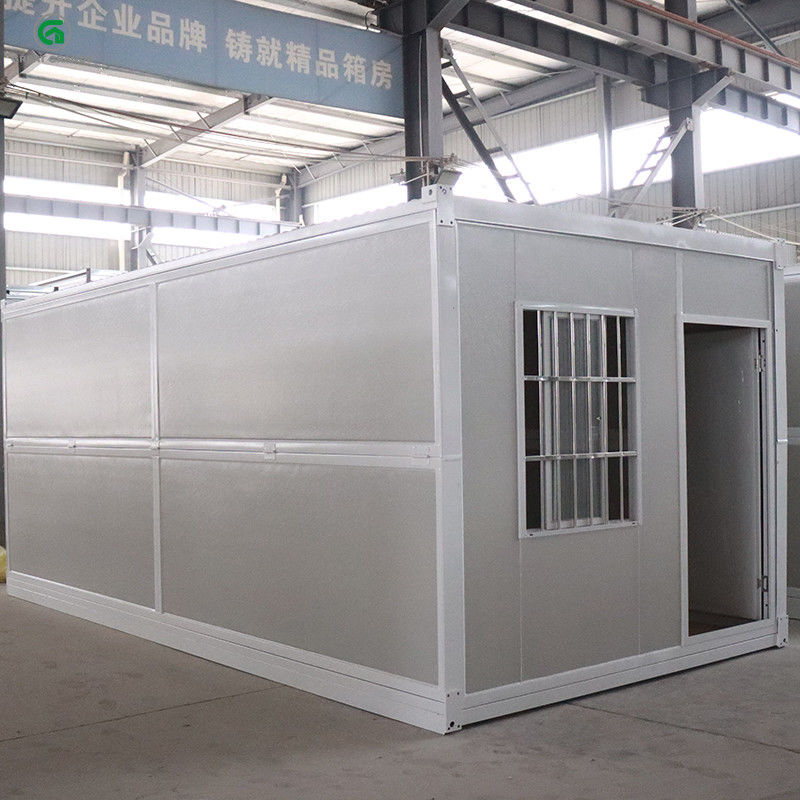

Folding Container Parameters
| Supporting equipment: | Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. | Roof bearing: 50 Kg/㎡ |
| Floor bearing capacity: 150 kg/㎡ | |
| Floor: Adopt A-glass Fire-proof board. | Walkway bearing capacity: 200 kg/㎡. |
| Wall side pressure: 80 kg/ ㎡. | |
| Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. | Wall deformation coefficient: 300 kg/㎡ |
| Security door: Anti-theft Steel door is to be used. | Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. | Anti Earthquake: 10 Grade. |
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2450mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
Advatage
Storage

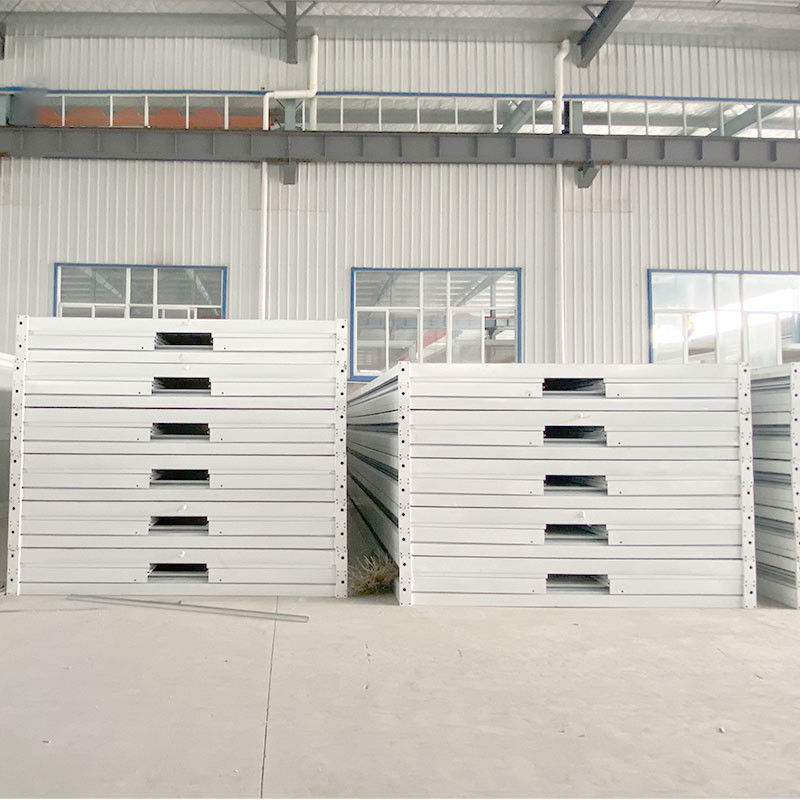

Our container room can store more than 10 sets, which greatly saves the storage area and the site use cost.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
FAQ
Q. Are you the manufacturer or the trading company?
A.We are factory
Q. What is your payment term?
A. Our payment term : for standard products 30% deposite, the banlance should be paid before delivery.
( for Customized products,will depend on the design. )
Q: How much is the price of the folding container? Is there a discount for bulk purchase?
A: Please contact us for specific information, we will have someone to answer:
