Place of Origin:
Hefei China
Brand Name:
Grande
Certification:
CE
Model Number:
A002
Contact Us
video
video

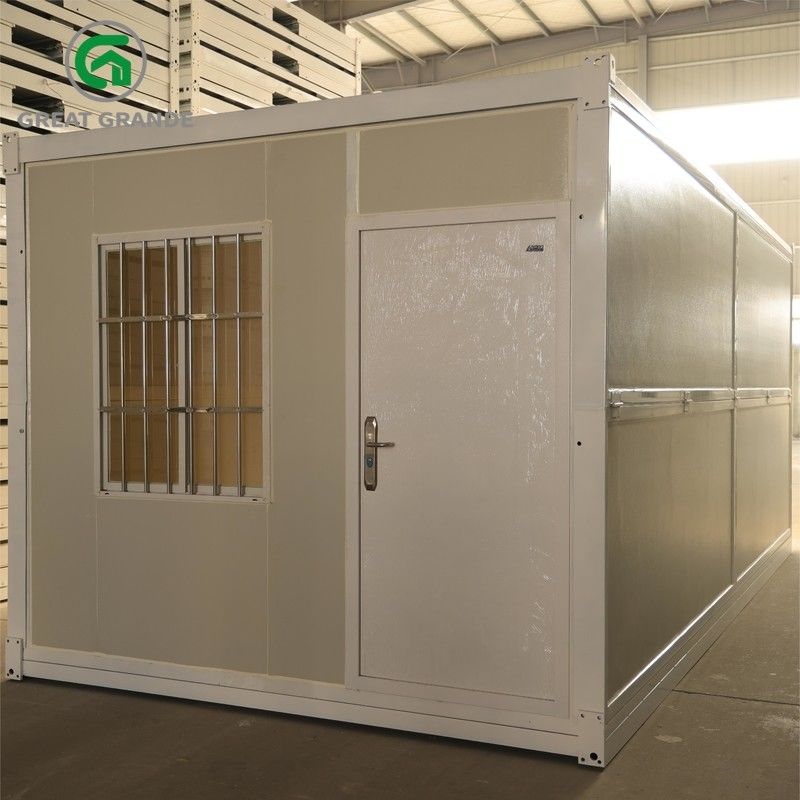

Folding Container Parameters
|
Supporting equipment: |
Parameters: |

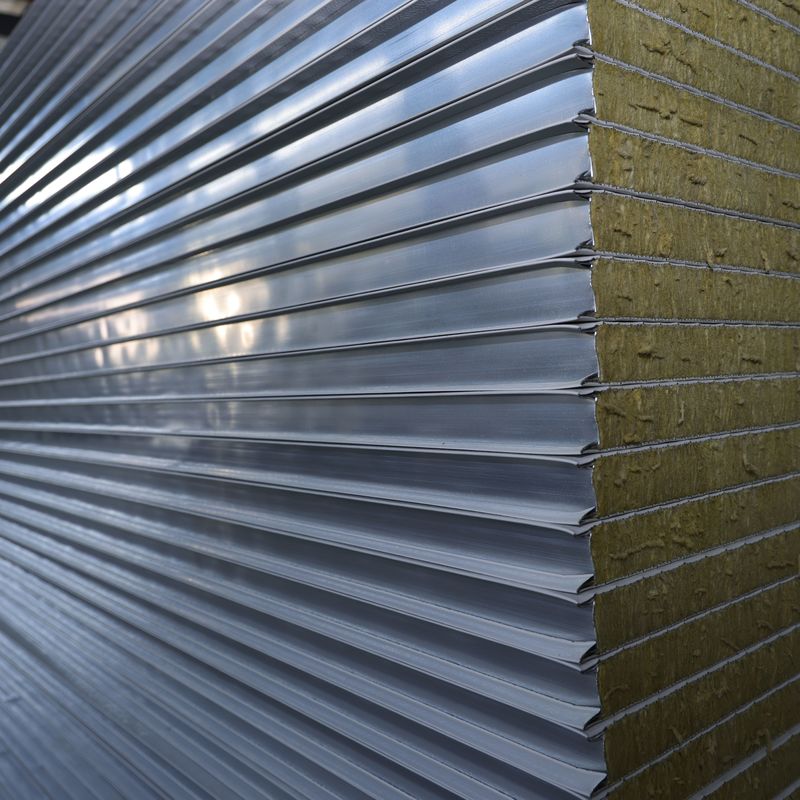

| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² |
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². |
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. |
Wall deformation coefficient: 300 kg/ m² |
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade. |
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating |
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2450mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
Advatage
Storage
Our container room can store more than 10 sets, which greatly saves the storage area and the site use cost.
Safe Using
The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.
Technical Details
Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.
Q1: What is a Folding Container House?
A1: A Folding Container House is a portable and modular housing solution that can be quickly assembled and disassembled for easy transportation and relocation.
Q2: What are the main features of a Folding Container House?
A2: The main features of a Folding Container House include its collapsible design, durability, flexibility in configuration, and ability to withstand various weather conditions.
Q3: How long does it take to assemble a Folding Container House?
A3: The assembly time for a Folding Container House depends on its size and complexity. However, on average, it can be set up within a few hours to a few days.
Q4: What materials are used in the construction of Folding Container Houses?
A4: Folding Container Houses are typically made from high-quality steel frames and durable, weather-resistant materials such as reinforced steel panels and insulated wall panels.
Q5: Can a Folding Container House be customized?
A5: Yes, Folding Container Houses offer customization options to meet specific requirements. They can be modified in terms of size, layout, interior design, and additional features like windows, doors, and insulation.
Q6: Are Folding Container Houses suitable for permanent living?
A6: Yes, Folding Container Houses can be used as permanent living spaces. They are designed to provide comfort, functionality, and can be equipped with all the necessary amenities required for long-term occupancy.
